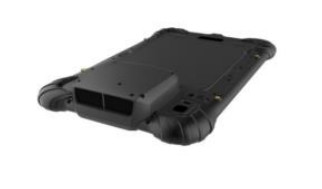

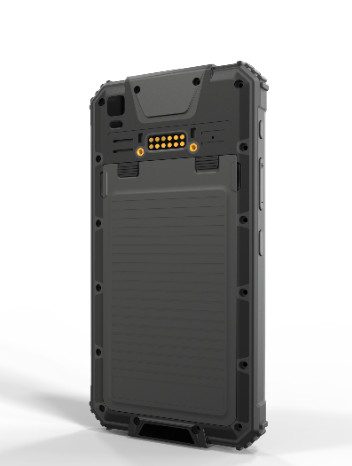

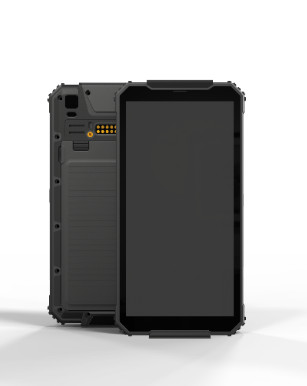

2D Scanner BT4.1 5GHz 500 Nits Hand Held Terminal Device

Minimum Order Quantity : 100PCS Packaging Details : Carton
Delivery Time : 30-45Days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 5000PCS/YEAR
Place of Origin: Shanghai, China Brand Name: Zoomsmart
Certification: CE Model Number: A6001

Detail Information

Water Proof: IP68 CPU: Qualcomm SDM632 8*1.8GHZ (4*A73+4*A53)
OS: Android 10GMS Memory: 4+64GB
SIM Card: Dual Sim & Dual Standby Bluetooth: BT4.1
GNSS: GPS/Glonass/Beidou/Galileo GPS Antenna:: Patch Antenna
Extended Interface:: USB, UART, GPIO Keypad:: Power,Volume Up/down, Function Buttons
2D Scanner: Yes
High Light:

500 Nits Hand Held Terminal Device

,

5GHz hand held terminal device

,

BT4.1 handheld terminal pda

Product Description

Ruggedized & Waterproof IP68 6 inch Rugged PDA with 2D Scanner for industrial use

Product information:



Ruggedlized housing with more memory and Android 10, it's a highly rugged HD+ smartphone, it is dustproof and waterproof rated IP67. It is built to withstand drops of up to 1.2 meters. It has 4G FDD-LTE connectivity, a side-fingerprint sensor and dual SIM capability.
It comes with a 6-inch capacitive multi-touch display with a HD+ resolution of 1560 x 720. It can be operated wearing gloves.
On the inside, it runs with Pure Android 10 on a Qualcomm SDM632 8*1.8GHZ (4*A73+4*A53) processor, 3 or 4GB of RAM, 64 GB of internal storage and a 128 GB microSD card slot.
It sports a 13MP+5MP Triple autofocus underwater camera (Front 5MP), a LED flash.
GPS/Glonass/Galileo/Beidou receiver, NFC, G-Sensor, geomagnetic sensor, gyroscope, side-fingerprint sensor.
Connectivity WiFi b/g/n/ac Dual Band 2.4GHz+5GHz, BT4.2, OTG, USB Type-C, 4G FDD-LTE, Fast charge and hybrid Dual SIM (nanoSIM + nanoSIM/SDCard).
It measures 81.6 x 162 x 720 mm, it weighs 265 g and its built-in low power resistant battery has a capacity of 5000 mAh.

2D Scanner is optional, easy to read and connect data. It is widely used in industry, transportation, navigation.


Parameter:


Category Detail
Project No A6001
LCD 6" 1440*720 500nits
Touch panel Capacitive
Size 82*162*14mm
Weight 200g
Drop Test 1.2m
Water proof IP68-1.2m for 1hour
Work Temp -20℃~60℃
CPU Qualcomm SDM632 4* Kryo 250 Gold + 4*Kryo 250 Silver, Big Cores
OS Android 9.0 / 10.0
RAM 4GB
Flash 64GB
Rear Camera 13M
Front Camera 5M
WIFI 802.11 a/b/g/n/ac, 2.4GHz/5GHz
SIM Card Dual sim & Dual standby
Bluetooth BT4.2
USB Type C USB3.0
Baterry 5000mAh - Low temperature battery
Fash Charge 5V2A/QC3.0
Wireless Charge Y
NFC Y
2D Scanner Y
Fingerprint Y Extra fee if needed
Light Sensor Y
GNSS GPS/Glonass/Beidou
GPS Antenna Patch Antenna -Compatible PIFA Antenna
Extended Interface USB, UART, GPIO,VBAT,VBUS
Keypad Power,Volume up/down, 2* Function Buttons
Accessories Strap, UHF, Handle - extra fee if needed

 2D Scanner BT4.1 5GHz 500 Nits Hand Held Terminal Device 0


FAQ:



Q1: Which size do you provide for the rugged tablet?
A1: Size: 5” 5.5” 6” 8” 10”



Q2: Can you provide OEM/ODM?
A2: ZoomSmart is a professional mobile ODM/OEM company integrating R&D, production, sales and after-sales service in China.



Q3: Is it water proof, anti-vandal, anti-glare, true flat with 10 point multi touch?
A3: All are available, pls confirm when you order to us.
